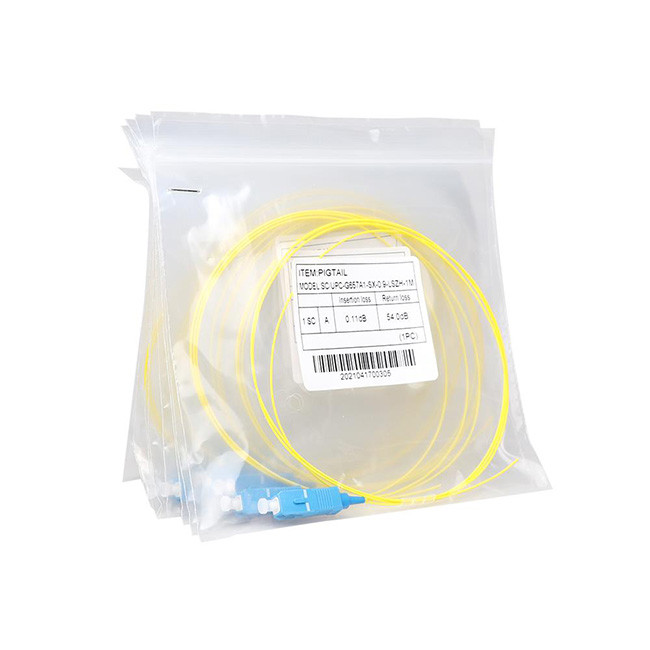

Simplex 0.9mm PVC LSZH OFNR SC UPC-SC UPC Singlemode G657A1 Pigtail

Ask Lasest Price
Brand Name :	CFOFC
Model Number :	CFOFC-PC-LC-SM-SX
Certification :	ROHS ISO 9001
Price :	Negotiable
Payment Terms :	T/T, L/C
Supply Ability :	10000 pcs/day
Delivery Time :	5-8 work days

Add to Cart

Product Details
Company Profile

Simplex 0.9mm PVC LSZH OFNR SC UPC-SC UPC Singlemode G657A1 Pigtail

Fiber Optic Pigtail 1m LC APC Simplex OS2 Single Mode PVC 0.9mm

Description Of Fiber Pigtail

Fiber Optic Pigtail is a fiber optic cable capped at either end with connectors that allow it to be rapidly and conveniently connected to CATV, an optical switch or other telecommunication equipment. Its thick layer of protection is used to connect the optical transmitter, receiver, and the terminal box.

Specifications Of Fiber Pigtail

Item	SM(Single Mode)		MM(Multimode)
Fiber Cable Type	G652D/G655/G657A1/G657A2		OM1	OM2/OM3/OM4
Fiber Diameter (um)	9/125		62.5/125	50/125
Cable OD (mm)	0.9 or customized
Endface Type	UPC	APC	UPC	UPC
Typical Insertion Loss (dB)	<0.2	<0.2	<0.3	<0.3
Return Loss (dB)	>50	>60	/
Insert-pull Test (dB)	<0.2	<0.3	<0.15
Interchangeability (dB)	<0.1	<0.15	<0.1
Anti-tensile Force (N)	>70
Temperature Range (℃)	-40~+85

Product Specification
Fiber count	12	Fiber Mode	9/125μm
Connector Type1	SC/APC	Connector Type2	Unterminated
Fiber Mode	SM	Breakout length	0.5m
Wavelength	1310/1550nm	Jacket Material	PVC/LSZH
Insertion loss	≤0.3dB	Interchangeability	≤0.2dB
Return loss	≥50dB	Vibration	≤0.2dB
Operating temperature	-40~75°C	Storage temperature	-45~85°C

Feature Of Fiber Pigtail

Low insertion loss & High return loss
Good exchangeability
Good Durability
High temperature stability
Superior PC/UPC/APC Polishing
Standard: IEC Grade B

Applications Of Fiber Pigtail

Fiber Optic communications system
Fiber Optic access networks
CATV/CCTV
Fiber Optic data communication
Fiber Optic Test Equipment

Simplex 0.9mm PVC LSZH OFNR SC UPC-SC UPC Singlemode G657A1 Pigtail

The reason why Choose us:

1. Our shipping time is strictly controlled

2. We can provide customized service, according to the order requirements, can be equipped with a salesman and an engineer

3. Our company has rich export experience and is familiar with the customs policies of various countries

4. Large product inventory with massive production line

5. China's professional gas detection leader

6. Product distribution involves multi-fields, dozens of countries including some developed countries.

FAQ

1. Are you factory direct?

as a professional fiber patch cord manufacturer, specialized in Fiber Optic Patch Cord,MPO, Fiber Optic PLC Splitter. Our products are mainly exported to Europe, South America, and some other countries and areas.

2. What is your main products?

Outdoor fiber optic cables indoor fiber optic cables FTTH Drop cables ADSS

Indoor armored patch cords fiber cable Optical patch cords Sc LC FC ST MTP MPO optical patch cord

3. Product quality guarantee period?

20 years Guarantee for fiber optic cable

4. Do you have certificate for raw material?

We build long-term relationship cooperation with qualified ISO9001 ROHS raw material suppliers
