Home > Fiber Optic Patch Cord >

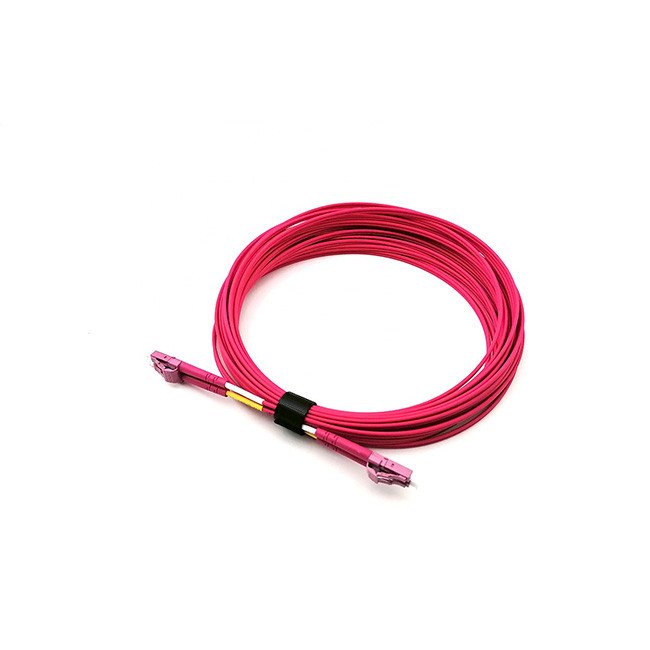

Lc Patch Cord Duplex 2.0mm PVC LSZH PC - PC Multimode OM4 Fiber Patch Cord

Product Categories

CFOFC Communications Ltd.

Contact Now

Lc Patch Cord Duplex 2.0mm PVC LSZH PC - PC Multimode OM4 Fiber Patch Cord

Ask Lasest Price
Brand Name :	CFOFC
Model Number :	CFOFC-PC-LC/LC-OM4
Certification :	ROHS ISO 9001
Price :	Negotiable
Payment Terms :	T/T, L/C
Supply Ability :	10000pcs/day
Delivery Time :	5-8 work days

Add to Cart

Product Details
Company Profile

Lc Patch Cord Duplex 2.0mm PVC LSZH PC - PC Multimode OM4 Fiber Patch Cord

Lc Patch Cord Duplex 2.0mm PVC LSZH PC - PC Multimode OM4 Fiber Patch Cord

Description Of Fiber Patch Cord

The LC connectors used for our patch cords are fully compatible with existing LC hardware. Two simplex connectors can be configured into a duplex format by adding a duplex clip. Other than standard single mode and multimode fibers, G655, OM2, OM3 and OM4 fibers are also available upon request. Flame retardant grade cable sheathing options are offered. Riser rated cable will be provided as standard. LSZH and Plenum can be provided upon request.

Specification Of Fiber Patch Cord

Parameters	OM4 Duplex LC-LC Fiber Optic Patch Cord
Fiber Type	SM(G.652/G.657A)	MM(OM1/OM2/OM3)
Jacket Materials	LSZH/OFNR/PVC
Connector Type	SC/LC/ST/LC/MU/MTRJ/MPO/E2000
Ferrule Materials	Ceramic
Testing Wavelengths	1310±30/1550±30nm	850±30/1300±30nm
Insertion Losss(dB) TIA/EIA-455-107	≤ 0.3dB (PC/UPC/APC)	≤ 0.3dB (PC/UPC)
Return Loss(dB) TIA/EIA-455-107	≥45dB(PC/UPC) ≥55dB(APC)	≥35dB(PC/UPC)
Exchangeability	≤ 0.2dB
Cable Assemblies	Pigtail/Simplex/Duplex/Fan-out Patchcord
Operating Temperature (° C)	-10~ + 70
Storage Temperature (° C)	-40 ~ +85
Package	1unit/bag
*All values specified are with connectors.

Features Of Fiber Patch Cord

Low insertion loss, high return loss
Small, light, high dense connection
Standard exact plastic material
High credibility and stability
Good in repeatability and exchangeabilit

Application Of Fiber Patch Cord

Data center ultra high-density cabling
Telecommunication networks
Fiber optic communication networks
Optical access network
Data processing networks

Lc Patch Cord Duplex 2.0mm PVC LSZH PC - PC Multimode OM4 Fiber Patch Cord

FAQ

1. Are you factory direct?
as a professional fiber patch cord manufacturer, specialized in Fiber Optic Patch Cord,MPO, Fiber Optic PLC Splitter. Our products are mainly exported to Europe, South America, and some other countries and areas.
2. What is your main products?
Outdoor fiber optic cables indoor fiber optic cables FTTH Drop cables ADSS
Indoor armored patch cords fiber cable Optical patch cords Sc LC FC ST MTP MPO optical patch cord
3. Product quality guarantee period?
20 years Guarantee for fiber optic cable
4. Do you have certificate for raw material?
We build long-term relationship cooperation with qualified ISO9001 ROHS raw material suppliers

The reason why Choose us:

1. Our shipping time is strictly controlled
2. We can provide customized service, according to the order requirements, can be equipped with a salesman and an engineer
3. Our company has rich export experience and is familiar with the customs policies of various countries
4. Large product inventory with massive production line
5. China's professional gas detection leader
6. Product distribution involves multi-fields, dozens of countries including some developed countries.
