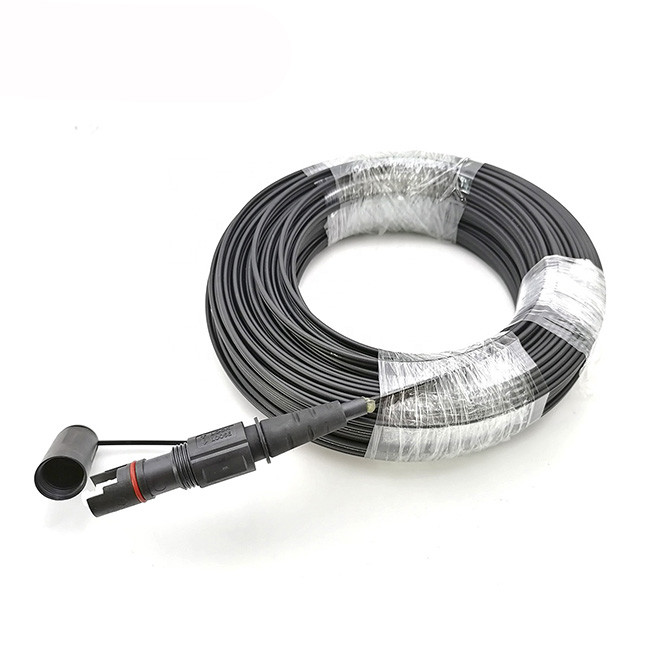

FTTH Pre Connectorized Drop Cable FIber Patch Cord Optitap Compatible H Connector

Corning Optitap/H connector fiber optic patch cable provide a robust and sealed connection solution for fiber to the home (FTTH) connectivity.The end incorporates an SC/APC type connection within a slim, sealed, threaded polymer housing allowing easy connection to either a multi port terminal or in-line extension receptecal. The SC/APC connectors mate to a standard adapter providing a common nterface for FTTX applications.

Features

Single fiber, SC-based connector
In-line connection available
Cable diameter Range: 2.0mm, 3.0mm, 4.8mm to 7mm
Bird proof and rodent resistant IP67 water and dust protection
Low profile in-line receptacle available
No installation tools required

Application

​Application
FTTH
Outdoor Areas
Harsh Environment

Type	SM-UPC		SM-APC		MM-UPC
	Typical	MAX	Typical	MAX	Typical	MAX
Insertion loss	≤0.1	≤0.3dB	≤0.15	≤0.3dB	≤0.05	≤0.3dB
Return loss	≥50dB		≥30dB		≥30dB
Durability	500 mating cycles
Working temperature	-40 to + 85℃
