CPRI Optitap FTTA Patch Cord H Connector SC Hardened Outdoor Waterproof

Product Categories

CFOFC Communications Ltd.

Contact Now

CPRI Optitap FTTA Patch Cord H Connector SC Hardened Outdoor Waterproof

Ask Lasest Price
Brand Name :	CFOFC
Model Number :	Optitap SC APC FTTA Patch Cord
Certification :	ISO9001/ REACH / ROHS
Price :	Negotiable
Payment Terms :	L/C, T/T,Paypal, Western Union
Supply Ability :	30,000 pcs per month
Delivery Time :	5-8 work days

Add to Cart

Product Details
Company Profile

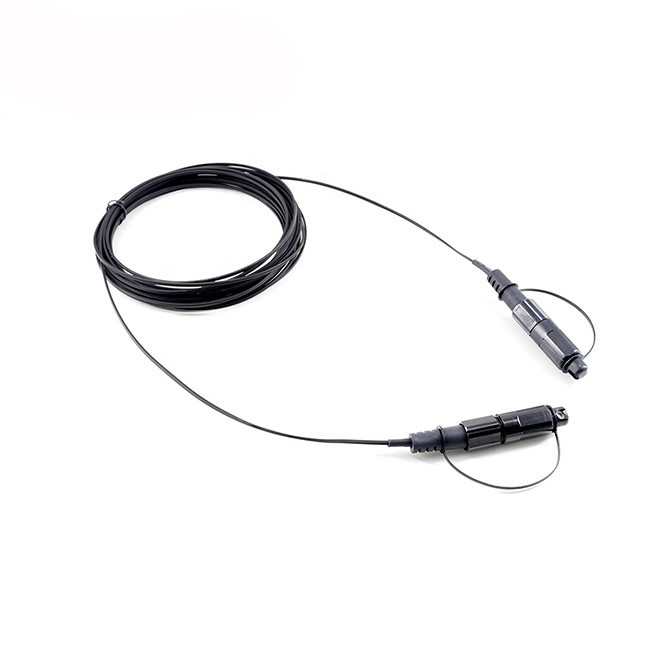

CPRI Optitap FTTA Patch Cord H Connector SC Hardened Outdoor Waterproof

FTTA Cpri OptiTap H Connector SC Hardened Outdoor Waterproof Patch Cable

Description OF CPRI Optitap FTTA Patch

Corning Optitap/H connector fiber optic patch cable provide a robust and sealed connection solution for fiber to the home (FTTH) connectivity.The end incorporates an SC/APC type connection within a slim, sealed, threaded polymer housing allowing easy connection to either a multi port terminal or in-line extension receptecal. The SC/APC connectors mate to a standard adapter providing a common interface for FTTX applications.

Specification OF CPRI Optitap FTTA Patch

Product name	Indoor/outdoor drop cable assemblies
Cable Type	dielectric or Tonable
Cable diameter	5.0mm round cable or 4.58.1mm flat cable or 4.59.8mm tonable cable
Application	Aerial , Direct Buried , Duct
Termination	Both end or one end
Specifications - Connector A
Reflectance, Typical	-65 dB
Insertion Loss, Typical	≤ 0.15 dB
Connector Type	SC/APC OptiTap connector(H Connector)
Specifications - Connector B
Reflectance, Typical	-65 dB
Insertion Loss, Typical	≤ 0.15 dB
Connector Type	SC APC Connector (simplex) with 2.0mm or 2.9mm leg
Optical Characteristics
Fiber Type	Single-mode
Fiber count	1F
Fiber Category	G.652.D
Wavelengths	1310 nm / 1550 nm
Maximum Attenuation	0.35 dB/km / 0.25 dB/km

Type	SM-UPC		SM-APC		MM-UPC
	Typical	MAX	Typical	MAX	Typical	MAX
Insertion loss	≤0.1	≤0.3dB	≤0.15	≤0.3dB	≤0.05	≤0.3dB
Return loss	≥50dB		≥30dB		≥30dB
Durability	500 mating cycles
Working temperature	-40 to + 85℃

Features OF CPRI Optitap FTTA Patch

1. Compatible with Corning-OptiTap and H-Connector;
2. Factory terminated for high performance;
3. Available with one or both ends connectorized;
4. Hybrid (one end with an OptiTap Connector, one end with standard SC connector) available with or without pulling grip; 5. Available in dielectric or toneable;
6. Designed for aerial, direct-buried or duct installation;
7. IP-68 water and dust protection ;
8. -40℃~85℃ operating temperature;

Application OF CPRI Optitap FTTA Patch

FTTH
Outdoor Areas
Harsh Environment

CPRI Optitap FTTA Patch Cord H Connector SC Hardened Outdoor Waterproof

The reason why Choose us:

1. On time delivery

2. Factory outlet

3. Customization

4. Large product inventory with massive production line

5. Product distribution involves multi-fields, dozens of countries including some developed countries.

FAQ

1. Can I have a sample order of this product?

Yes, we welcome sample order for you to test and check the quality. Mixed samples are acceptable as well.

2. How to Store the Optical Fiber Cable Properly?

Store the drum indoor before using, the drum should place sideways not on the end.

3. What's your payment terms?

We accept T/T,L/C,Western Union,D/P etc. 30% in advance and 70% before shipment.

4. Are you factory direct?

As a professional Cable manufacturer, specialized in Fiber Optic Patch Cord, Fiber Optic PLC Splitter. Our products are mainly exported to Europe, South America, and some other countries and areas.

5. Is there any discount on the product?

We have several production promotion activities every month, welcome to inquire.
