GYFTW Fiber Optic Cable Central Loose Tube Non-Armored Frp Strength
Member Waterproof

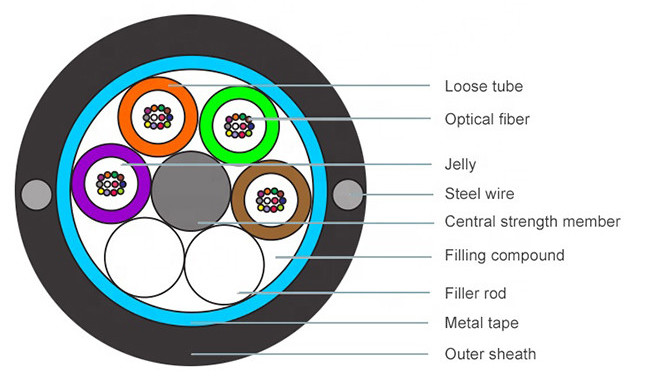

Description of GYFTW optical fiber cable
The fibers, ∅250µm colored fibers, are positioned in a loose tube
made of a high modulus plastic. The tubes are filled with a
water-resistant filling compound. A Fiber Reinforced Plastic (FRP)
locates in the center of core as a non-metallic strength member.
Tubes (and fillers) are stranded around the strength member into a
compact and circular cable core. After the cable core is filled
with the fillig compound to protect it from water ingress, the
cable is protected by a layer of corrugated steel tape, two
pareallel steel wires are placed at the two sides of the steel
tape, finally the cable is completed with a PE sheath.
Specification of GYFTW optical fiber cable
| Application | outdoor |
| Certification | ISO9001/CE/ROHS/REACH |
| Fiber type | OS1 / OS2 / OM1 / OM2 / OM3 / OM4 |
| Color | Black |
| Fiber count | 2-144 |
| Jacket material | PE |
| Cable diameter | 5.0, 7.0
|
Parameter |
Fiber Count | Cable Dimension(mm) | Cable weight
(kg) | Tensile(N) | Crush(N/10cm) | Bending radius(mm) |
Long Term | Short Term | Long Term | Short Term | Static | Dynamic |
1～12 | 5.8 | 19 | 150 | 300 | 300 | 1000 | 10D | 20D |
24 | 6.8 | 28 | 150 | 300 | 300 | 1000 | 10D | 20D |
Feature of GYFTW optical fiber cable
1. Excellent mechanical and environmental performance;
2. High strength loose tube that is hydrolysis resistant;
3. Special tube filling compound ensure a critical protection of
fiber;
4. Two parallel steel wires ensure tensile strength
5. PSP enchancing moisture-proof
6. Small diameter, light weight and friendly installation
Application of GYFTW optical fiber cable
1. Duct
2. Aerial
The reason why Choose us:
1. On time delivery
2. Factory outlet
3. Large product inventory with massive production line
4. Quality guarantee
5. One to one special after-sales service
