Single Mode Fiber Optic Splitter 1x16 Mini G657A1 SC APC

Ask Lasest Price
Brand Name :	CFOFC
Model Number :	ftth sc ABS plc splitter
Certification :	Rohs ISO 9001
Price :	Negotiable
Payment Terms :	L/C, T/T, D/P
Supply Ability :	100000pcs per week
Delivery Time :	5-8 work days

Add to Cart

Product Details
Company Profile

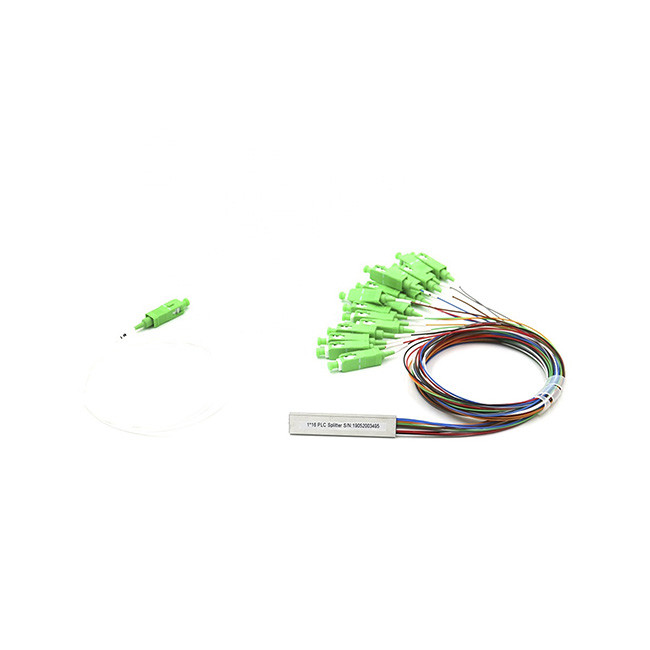

Single Mode Fiber Optic Splitter 1x16 Mini G657A1 SC APC

1x16 mini Optical Fiber PLC Splitter Single mode G657A1 SC APC

Description of Fiber PLC Splitter

Planar lightwave circuit (PLC) splitter is a type of optical power management device that is fabricated using silica optical waveguide technology. It features small size, high reliability, wide operating wavelength range and good channel-to-channel uniformity, and is widely used in PON networks to realize optical signal power splitting.CFOFC provides whole series of 1xN and 2xN splitter products that are tailored for specific applications. All products meet GR-1209-CORE and GR-1221-CORE requirements.

Specification of Fiber PLC Splitter

Parameters
Parameters	1×2	1×4	1×8	1×16	1×32	1×64	1×128
Operating Wavelength(nm)	1260~1650
Fiber Type	G657A1 or customer specified
Insertion Loss (dB)(P/S Grade)	3.8/4.0	7.1/7.3	10.2/10.5	13.5/13.7	16.5/16.9	20.5/21.0	23.8/24.2
Loss Uniformit(dB)	0.4	0.6	0.8	1.2	1.5	2	2.5
Polarization Dependent Loss(dB)	0.2	0.2	0.2	0.25	0.3	0.35	0.4
Return Loss(dB)(P/S Grade)	55/50	55/50	55/50	55/50	55/50	55/50	55/50
Directivity(dB)	55	55	55	55	55	55	55
Wavelength Dependent Loss(dB)	0.3	0.3	0.3	0.5	0.5	0.5	0.5
Temperature Stability (-40~85℃)(dB)	0.4	0.4	0.4	0.5	0.5	0.5	0.5
Operating Temperature(℃)	-40~+85
Storage Temperature(℃)	-40~+85
Device Dimension(mm)	40×4×4	40×4×4	40×4×4	50×7×4	50×7×4	60×12×4	N/A
Module Dimension(mm)	100×80×10			120×80×18	141×115×18
Mini-Module Dimension(mm)	50×7×4			60×12×4	80×20×6	100×40×6	N/A

Features of Fiber PLC Splitter

Excellent Environmental Stability
Excellent Mechanical
Good uniformity and low insertion loss
Low Polarization Dependent Loss
Stability Telcordia GR-1221 and GR-1209

Application of Fiber PLC Splitter

FTTx Systems
Digital, hybrid and AM-Video systems
LAN,WAN and Metro Networks
CATV systems
Other applications in fiber optic systems

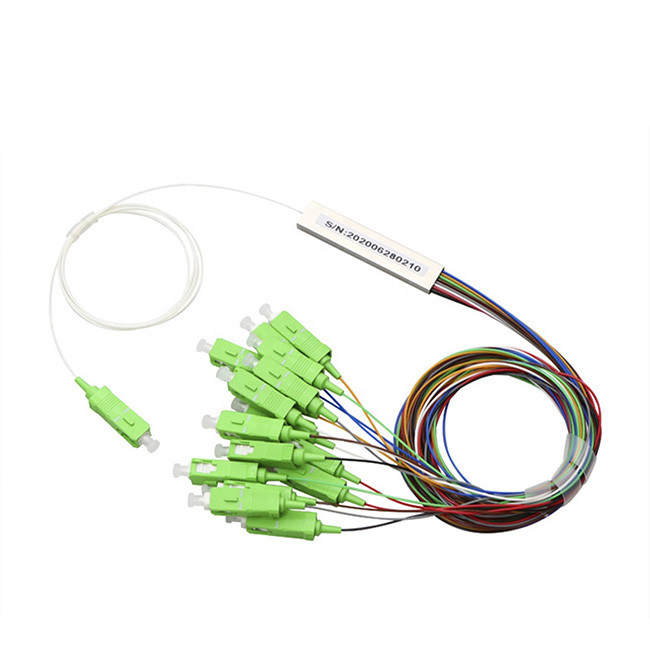

Single Mode Fiber Optic Splitter 1x16 Mini G657A1 SC APC

The reason why Choose us

1. On time delivery

2. Factory outlet
3. Customization
4. Large product inventory with massive production line
5. Product distribution involves multi-fields, dozens of countries
including some developed countries.
FAQ
1. Can I have a sample order of this product?
Yes, we welcome sample order for you to test and check the quality.
Mixed samples are acceptable as well.
2. How to Store the Optical Fiber Cable Properly?
Store the drum indoor before using, the drum should place sideways
not on the end.
3. What's your payment terms?
We accept T/T,L/C,Western Union,D/P etc. 30% in advance and 70%
before shipment.
4. Are you factory direct?
As a professional Cable manufacturer, specialized in Fiber Optic
Patch Cord, Fiber Optic PLC Splitter. Our products are mainly
exported to Europe, South America, and some other countries and
areas.
5. Is there any discount on the product?
We have several production promotion activities every month,
welcome to inquire.
