1x8 PLC Splitter 24 Port Fiber Termination Box Waterproof IP65

Ask Lasest Price
Brand Name :	CFOFC
Model Number :	Fiber Optic Distribution box
Certification :	Rohs ISO 9001
Price :	Negotiable
Payment Terms :	L/C, T/T
Supply Ability :	10000pcs per week
Delivery Time :	5-8 work days

Add to Cart

Product Details
Company Profile

1x8 PLC Splitter 24 Port Fiber Termination Box Waterproof IP65

1x8 PLC Splitter 24 Port Fiber Termination Box Waterproof IP65

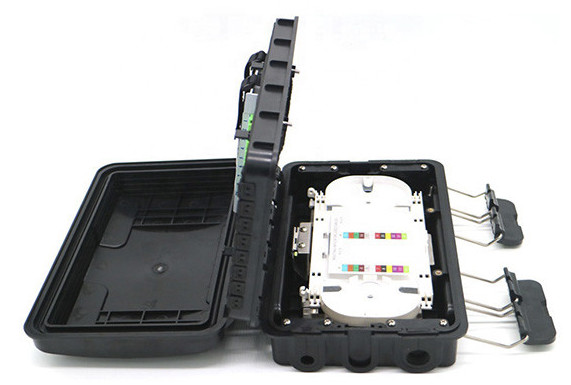

Description of fiber termination box

This new design fiber distribution box is designed for in-line application to provide a protected access point between the distribution cable and drop cable. This product can keep internal components away from outdoor environmental damage. Its flexible configuration support 3 cable in and 3 cable out. Cassette type optical splitter could be build-in. Good performance is useful in harsh environment.it integrates the splitting and distribution function in one termination box, can realize the splicing and branch of the optical cable, and is suitable for the cable connection of the optical communication equipment. Through the adapter of the termination box, the signal is drawn by the optical fiber jumper to realize the optical fiber distribution function; Also suitable for fiber cable and pigtails protective connection. The unique design of the box-shaped structure of the box can be used as a fiber splitting or splice box; the flip core can be turned over 180 degrees, which is more convenient to install the box and maintenance, after remove the flipping core it can be a splice closure to meet the user's different choices.

Specification of fiber termination box

Size	290190110
Max Capacity Of Splice	24 single fiber
Material	ABS+PC
Installation method	Wall/Pole mount
Max. Splitting	1*8 2pcs

Feature of fiber termination box

1. The product is made of high-quality impact resistant plastic and has a standard user interface that can be turned on repeatedly.

2. Outdoor application and good UV resistant, impact resistant and waterproof

3. It can be loaded with 2pcs 1x8 LGX Splitter or 2pcs steel tube micro PLC Splitter.

4. Unique flip splice tray, flip angle more than 180 degrees, the splicing area and the distribution cable area is more distinct,

5. reducing the cables crossing.

6. Numerous application such mid-span, branch and direct splice.

7. layer structure and easy to maintain

8. It is suitable for the application on NAP in the distributed split PON architecture.

9. Protection Level: IP65

10. Excellent sealing performance. It is compatible with different optical cables.

Application of fiber termination box

1. Fiber to the home(FTTH)

2. Fiber to the building(FTTB)

3. Local area networks

4. Wide area networks

1x8 PLC Splitter 24 Port Fiber Termination Box Waterproof IP65
